#include "shz_vector.h"
#include "shz_quat.h"
#include "inline/shz_xmtrx.inl.h"

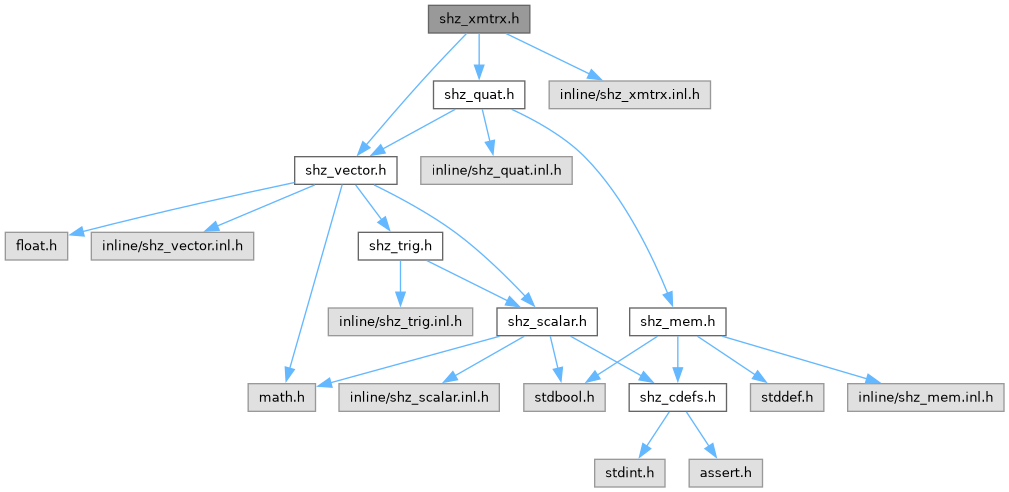

Include dependency graph for shz_xmtrx.h:

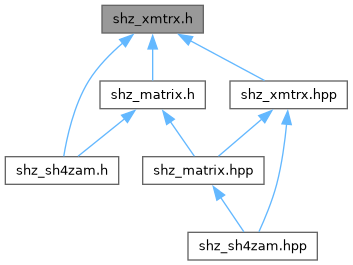

This graph shows which files directly or indirectly include this file:

Enumerations
enum	shz_xmtrx_reg { SHZ_XMTRX_XF0 , SHZ_XMTRX_XF1 , SHZ_XMTRX_XF2 , SHZ_XMTRX_XF3 , SHZ_XMTRX_XF4 , SHZ_XMTRX_XF5 , SHZ_XMTRX_XF6 , SHZ_XMTRX_XF7 , SHZ_XMTRX_XF8 , SHZ_XMTRX_XF9 , SHZ_XMTRX_XF10 , SHZ_XMTRX_XF11 , SHZ_XMTRX_XF12 , SHZ_XMTRX_XF13 , SHZ_XMTRX_XF14 , SHZ_XMTRX_XF15 }

Functions
Accessors
Setting and retrieving individual XMTRX register values.
float	shz_xmtrx_read (shz_xmtrx_reg_t xf) SHZ_NOEXCEPT

void	shz_xmtrx_write (shz_xmtrx_reg_t xf, float value) SHZ_NOEXCEPT

shz_vec4_t	shz_xmtrx_read_row (unsigned int index) SHZ_NOEXCEPT

shz_vec4_t	shz_xmtrx_read_col (unsigned int index) SHZ_NOEXCEPT

void	shz_xmtrx_write_row (unsigned int index, shz_vec4_t vector) SHZ_NOEXCEPT

void	shz_xmtrx_write_col (unsigned int index, shz_vec4_t vector) SHZ_NOEXCEPT

void	shz_xmtrx_swap_rows (unsigned int index1, unsigned int index2) SHZ_NOEXCEPT

void	shz_xmtrx_swap_cols (unsigned int index1, unsigned int index2) SHZ_NOEXCEPT

Loading
Routines for loading XMTRX contents from memory.
void	shz_xmtrx_load_4x4 (const shz_mat4x4_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_load_wxyz_4x4 (const shz_mat4x4_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_load_unaligned_4x4 (const float matrix[16]) SHZ_NOEXCEPT

void	shz_xmtrx_load_cols_4x4 (const shz_vec4_t c1, const shz_vec4_t c2, const shz_vec4_t c3, const shz_vec4_t c4) SHZ_NOEXCEPT

void	shz_xmtrx_load_rows_4x4 (const shz_vec4_t r1, const shz_vec4_t r2, const shz_vec4_t r3, const shz_vec4_t r4) SHZ_NOEXCEPT

void	shz_xmtrx_load_transpose_4x4 (const shz_mat4x4_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_load_transpose_unaligned_4x4 (const float matrix[16]) SHZ_NOEXCEPT

void	shz_xmtrx_load_3x4 (const shz_mat3x4_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_load_cols_4x3 (const shz_vec4_t c1, const shz_vec4_t c2, const shz_vec4_t *c3) SHZ_NOEXCEPT

void	shz_xmtrx_load_rows_3x4 (const shz_vec4_t r1, const shz_vec4_t r2, const shz_vec4_t *r3) SHZ_NOEXCEPT

void	shz_xmtrx_load_3x3 (const shz_mat3x3_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_load_transpose_3x3 (const float *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_load_2x2 (const shz_mat2x2_t *matrix) SHZ_NOEXCEPT

Storing
Routines for saving XMTRX contents to memory.
void	shz_xmtrx_store_4x4 (shz_mat4x4_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_store_unaligned_4x4 (float matrix[16]) SHZ_NOEXCEPT

void	shz_xmtrx_store_transpose_4x4 (shz_mat4x4_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_store_transpose_unaligned_4x4 (float matrix[16]) SHZ_NOEXCEPT

void	shz_xmtrx_store_3x4 (shz_mat3x4_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_store_3x3 (shz_mat3x3_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_store_transpose_3x3 (shz_mat3x3_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_store_2x2 (shz_mat2x2_t *matrix) SHZ_NOEXCEPT

Initialization
Routines used to initialize the entirety of XMTRX.
void	shz_xmtrx_init_identity (void) SHZ_NOEXCEPT

void	shz_xmtrx_init_identity_safe (void) SHZ_NOEXCEPT

void	shz_xmtrx_init_zero (void) SHZ_NOEXCEPT

void	shz_xmtrx_init_one (void) SHZ_NOEXCEPT

void	shz_xmtrx_init_fill (float value) SHZ_NOEXCEPT

void	shz_xmtrx_init_translation (float x, float y, float z) SHZ_NOEXCEPT

void	shz_xmtrx_init_scale (float x, float y, float z) SHZ_NOEXCEPT

void	shz_xmtrx_init_rotation_x (float x) SHZ_NOEXCEPT

void	shz_xmtrx_init_rotation_y (float y) SHZ_NOEXCEPT

void	shz_xmtrx_init_rotation_z (float z) SHZ_NOEXCEPT

void	shz_xmtrx_init_rotation_xyz (float xAngle, float yAngle, float zAngle) SHZ_NOEXCEPT

void	shz_xmtrx_init_rotation_zyx (float zAngle, float yAngle, float xAngle) SHZ_NOEXCEPT

void	shz_xmtrx_init_rotation_zxy (float zAngle, float xAngle, float yAngle) SHZ_NOEXCEPT

void	shz_xmtrx_init_rotation_yxz (float yAngle, float xAngle, float zAngle) SHZ_NOEXCEPT

void	shz_xmtrx_init_rotation (float angle, float xAxis, float yAxis, float zAxis) SHZ_NOEXCEPT

void	shz_xmtrx_init_rotation_dir (float angle, float x, float y, float z) SHZ_NOEXCEPT

void	shz_xmtrx_init_diagonal (float x, float y, float z, float w) SHZ_NOEXCEPT

void	shz_xmtrx_init_upper_triangular (float col1, shz_vec2_t col2, shz_vec3_t col3, shz_vec4_t col4) SHZ_NOEXCEPT

void	shz_xmtrx_init_lower_triangular (shz_vec4_t col1, shz_vec3_t col2, shz_vec2_t col3, float col4) SHZ_NOEXCEPT

void	shz_xmtrx_init_symmetric_skew (float x, float y, float z) SHZ_NOEXCEPT

void	shz_xmtrx_init_outer_product (shz_vec4_t x, shz_vec4_t y) SHZ_NOEXCEPT

void	shz_xmtrx_init_permutation_wxyz (void) SHZ_NOEXCEPT

void	shz_xmtrx_init_permutation_yzwx (void) SHZ_NOEXCEPT

void	shz_xmtrx_init_permutation_wzyx (void) SHZ_NOEXCEPT

void	shz_xmtrx_init_screen (float width, float height) SHZ_NOEXCEPT

void	shz_xmtrx_init_lookat (shz_vec3_t eye, shz_vec3_t center, shz_vec3_t up) SHZ_NOEXCEPT

void	shz_xmtrx_init_ortho (float left, float right, float bottom, float top, float znear, float zfar) SHZ_NOEXCEPT

void	shz_xmtrx_init_frustum (float left, float right, float bottom, float top, float znear, float zfar) SHZ_NOEXCEPT

void	shz_xmtrx_init_perspective (float fov, float aspect, float znear) SHZ_NOEXCEPT

void	shz_xmtrx_init_rotation_quat (shz_quat_t q) SHZ_NOEXCEPT

Apply Operation
Updates only relevant values of XMTRX based on the given transform.
void	shz_xmtrx_apply_4x4 (const shz_mat4x4_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_apply_unaligned_4x4 (const float matrix[16]) SHZ_NOEXCEPT

void	shz_xmtrx_apply_transpose_4x4 (const shz_mat4x4_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_apply_transpose_unaligned_4x4 (const float matrix[16]) SHZ_NOEXCEPT

void	shz_xmtrx_apply_reverse_4x4 (const shz_mat4x4_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_apply_reverse_unaligned_4x4 (const float matrix[16]) SHZ_NOEXCEPT

void	shz_xmtrx_apply_reverse_transpose_4x4 (const shz_mat4x4_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_apply_reverse_transpose_unaligned_4x4 (const float matrix[16]) SHZ_NOEXCEPT

void	shz_xmtrx_apply_3x4 (const shz_mat3x4_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_apply_3x3 (const shz_mat3x3_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_apply_transpose_3x3 (const shz_mat3x3_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_apply_2x2 (const shz_mat2x2_t *matrix) SHZ_NOEXCEPT

void	shz_xmtrx_apply_translation (float x, float y, float z) SHZ_NOEXCEPT

void	shz_xmtrx_apply_scale (float x, float y, float z) SHZ_NOEXCEPT

void	shz_xmtrx_apply_rotation_x (float x) SHZ_NOEXCEPT

void	shz_xmtrx_apply_rotation_y (float y) SHZ_NOEXCEPT

void	shz_xmtrx_apply_rotation_z (float z) SHZ_NOEXCEPT

void	shz_xmtrx_apply_rotation_xyz (float xAngle, float yAngle, float zAngle) SHZ_NOEXCEPT

void	shz_xmtrx_apply_rotation_zyx (float zAngle, float yAngle, float xAngle) SHZ_NOEXCEPT

void	shz_xmtrx_apply_rotation_zxy (float zAngle, float xAngle, float yAngle) SHZ_NOEXCEPT

void	shz_xmtrx_apply_rotation_yxz (float yAngle, float xAngle, float zAngle) SHZ_NOEXCEPT

void	shz_xmtrx_apply_rotation (float angle, float x, float y, float z) SHZ_NOEXCEPT

void	shz_xmtrx_apply_rotation_quat (shz_quat_t quat) SHZ_NOEXCEPT

void	shz_xmtrx_apply_lookat (shz_vec3_t eye, shz_vec3_t center, shz_vec3_t up) SHZ_NOEXCEPT

void	shz_xmtrx_apply_ortho (float left, float right, float bottom, float top, float znear, float zfar) SHZ_NOEXCEPT

void	shz_xmtrx_apply_frustum (float left, float right, float bottom, float top, float znear, float zfar) SHZ_NOEXCEPT

void	shz_xmtrx_apply_perspective (float fov, float aspect, float znear) SHZ_NOEXCEPT

void	shz_xmtrx_apply_screen (float width, float height) SHZ_NOEXCEPT

void	shz_xmtrx_apply_symmetric_skew (float x, float y, float z) SHZ_NOEXCEPT

void	shz_xmtrx_apply_permutation_wxyz (void) SHZ_NOEXCEPT

void	shz_xmtrx_apply_permutation_yzwx (void) SHZ_NOEXCEPT

void	shz_xmtrx_apply_permutation_wzyx (void) SHZ_NOEXCEPT

void	shz_xmtrx_apply_self (void) SHZ_NOEXCEPT

GL Transformations
OpenGL-style 4x4 matrix transforms.
void	shz_xmtrx_translate (float x, float y, float z) SHZ_NOEXCEPT

void	shz_xmtrx_scale (float x, float y, float z) SHZ_NOEXCEPT

void	shz_xmtrx_rotate_x (float radians) SHZ_NOEXCEPT

void	shz_xmtrx_rotate_y (float radians) SHZ_NOEXCEPT

void	shz_xmtrx_rotate_z (float radians) SHZ_NOEXCEPT

void	shz_xmtrx_rotate_xyz (float xRadians, float yRadians, float zRadians) SHZ_NOEXCEPT

void	shz_xmtrx_rotate_zyx (float zRadians, float yRadians, float xRadians) SHZ_NOEXCEPT

void	shz_xmtrx_rotate_zxy (float zRadians, float xRadians, float yRadians) SHZ_NOEXCEPT

void	shz_xmtrx_rotate_yxz (float yRadians, float xRadians, float zRadians) SHZ_NOEXCEPT

void	shz_xmtrx_rotate (float radians, float xAxis, float yAxis, float zAxis) SHZ_NOEXCEPT

Reverse GL Transformations
Pre-multiplication variants of OpenGL-style 4x4 matrix transforms.
void	shz_xmtrx_translate_reverse (float x, float y, float z) SHZ_NOEXCEPT

void	shz_xmtrx_scale_reverse (float x, float y, float z) SHZ_NOEXCEPT

Compound Operations
Multiple operations combined into one pipelined transaction.
void	shz_xmtrx_load_apply_4x4 (const shz_mat4x4_t matrix1, const shz_mat4x4_t matrix2) SHZ_NOEXCEPT

void	shz_xmtrx_load_apply_unaligned_4x4 (const float matrix1[16], const float matrix2[16]) SHZ_NOEXCEPT

void	shz_xmtrx_apply_store_4x4 (shz_mat4x4_t out, const shz_mat4x4_t in) SHZ_NOEXCEPT

void	shz_xmtrx_apply_store_unaligned_4x4 (float out[16], const float in[16]) SHZ_NOEXCEPT

void	shz_xmtrx_load_apply_store_4x4 (shz_mat4x4_t out, const shz_mat4x4_t matrix1, const shz_mat4x4_t *matrix2) SHZ_NOEXCEPT

void	shz_xmtrx_load_apply_store_unaligned_4x4 (float out[16], const float matrix1[16], const float matrix2[16]) SHZ_NOEXCEPT

void	shz_xmtrx_load_apply_store_3x4 (shz_mat3x4_t out, const shz_mat3x4_t matrix1, const shz_mat3x4_t *matrix2) SHZ_NOEXCEPT

void	shz_xmtrx_load_apply_store_3x3 (shz_mat3x3_t out, const shz_mat3x3_t matrix1, const shz_mat3x3_t *matrix2) SHZ_NOEXCEPT

Transformations
Transforming vectors and points against XMTRX.
shz_vec4_t	shz_xmtrx_transform_vec4 (shz_vec4_t vec) SHZ_NOEXCEPT

shz_vec3_t	shz_xmtrx_transform_vec3 (shz_vec3_t vec) SHZ_NOEXCEPT

shz_vec2_t	shz_xmtrx_transform_vec2 (shz_vec2_t vec) SHZ_NOEXCEPT

shz_vec2_t	shz_xmtrx_transform_point2 (shz_vec2_t pt) SHZ_NOEXCEPT

shz_vec3_t	shz_xmtrx_transform_point3 (shz_vec3_t pt) SHZ_NOEXCEPT

Setters
Sets the values of related XMTRX components.
void	shz_xmtrx_set_translation (float x, float y, float z) SHZ_NOEXCEPT

void	shz_xmtrx_set_scale (float x, float y, float z) SHZ_NOEXCEPT

Getters
Gets the values of related XMTRX components.
shz_vec3_t	shz_xmtrx_get_translation (void) SHZ_NOEXCEPT

shz_vec3_t	shz_xmtrx_get_scale (void) SHZ_NOEXCEPT

Component-Wise Matrix Operations
Operations applying each component of a matrix onto XMTRX.
void	shz_xmtrx_add_4x4 (const shz_mat4x4_t *mat) SHZ_NOEXCEPT

void	shz_xmtrx_sub_4x4 (const shz_mat4x4_t *mat) SHZ_NOEXCEPT

Miscellaneous
Random operations and conversions on XMTRX.
void	shz_xmtrx_add_symmetric_skew (float x, float y, float z) SHZ_NOEXCEPT

void	shz_xmtrx_add_diagonal (float x, float y, float z, float w) SHZ_NOEXCEPT

void	shz_xmtrx_transpose (void) SHZ_NOEXCEPT

void	shz_xmtrx_negate (void) SHZ_NOEXCEPT

void	shz_xmtrx_abs (void) SHZ_NOEXCEPT

shz_quat_t	shz_xmtrx_to_quat (void) SHZ_NOEXCEPT

float	shz_xmtrx_determinant (void) SHZ_NOEXCEPT

void	shz_xmtrx_invert (void) SHZ_NOEXCEPT

void	shz_xmtrx_blend (const shz_mat4x4_t *joint_matrix, float weight) SHZ_NOEXCEPT

Detailed Description

Active Matrix API.

This file provides an API built around manipulating and performing calculations using the SH4's "current" 4x4 matrix, which is held within a secondary back-bank of 16 single-precision floating-point registers.

Todo

shz_xmtrx_xxx_fft()
shz_xmtrx_invert() (within XMTRX)
shz_xmtrx_position()
shz_xmtrx_size()
shz_xmtrx_angles()
shz_xmtrx_init_rotation_quat() (within XMTRX)
shz_xmtrx_apply_store_4x4()

Author: 2025, 2026 Falco Girgis; 2025 Twada; 2026 TapamN

Copyright: MIT License

Definition in file shz_xmtrx.h.

Enumeration Type Documentation

◆ shz_xmtrx_reg

enum shz_xmtrx_reg

Registers comprising XMTRX, in the FPU back-bank.

Enumerator
SHZ_XMTRX_XF0	FP register `xf0`.
SHZ_XMTRX_XF1	FP register `xf1`.
SHZ_XMTRX_XF2	FP register `xf2`.
SHZ_XMTRX_XF3	FP register `xf3`.
SHZ_XMTRX_XF4	FP register `xf4`.
SHZ_XMTRX_XF5	FP register `xf5`.
SHZ_XMTRX_XF6	FP register `xf6`.
SHZ_XMTRX_XF7	FP register `xf7`.
SHZ_XMTRX_XF8	FP register `xf8`.
SHZ_XMTRX_XF9	FP register `xf9`.
SHZ_XMTRX_XF10	FP register `xf10`.
SHZ_XMTRX_XF11	FP register `xf11`.
SHZ_XMTRX_XF12	FP register `xf12`.
SHZ_XMTRX_XF13	FP register `xf13`.
SHZ_XMTRX_XF14	FP register `xf14`.
SHZ_XMTRX_XF15	FP register `xf15`.

Definition at line 68 of file shz_xmtrx.h.

                           {
    SHZ_XMTRX_XF0,  //!< FP register `xf0`.
    SHZ_XMTRX_XF1,  //!< FP register `xf1`.
    SHZ_XMTRX_XF2,  //!< FP register `xf2`.
    SHZ_XMTRX_XF3,  //!< FP register `xf3`.
    SHZ_XMTRX_XF4,  //!< FP register `xf4`.
    SHZ_XMTRX_XF5,  //!< FP register `xf5`.
    SHZ_XMTRX_XF6,  //!< FP register `xf6`.
    SHZ_XMTRX_XF7,  //!< FP register `xf7`.
    SHZ_XMTRX_XF8,  //!< FP register `xf8`.
    SHZ_XMTRX_XF9,  //!< FP register `xf9`.
    SHZ_XMTRX_XF10, //!< FP register `xf10`.
    SHZ_XMTRX_XF11, //!< FP register `xf11`.
    SHZ_XMTRX_XF12, //!< FP register `xf12`.
    SHZ_XMTRX_XF13, //!< FP register `xf13`.
    SHZ_XMTRX_XF14, //!< FP register `xf14`.
    SHZ_XMTRX_XF15  //!< FP register `xf15`.
} shz_xmtrx_reg_t, shz_xmtrx_reg;

Function Documentation

◆ shz_xmtrx_read()

float shz_xmtrx_read ( shz_xmtrx_reg_t xf )

Returns the floating-point value held within the given XMTRX register.

◆ shz_xmtrx_write()

void shz_xmtrx_write	(	shz_xmtrx_reg_t	xf,
		float	value )

Sets the floating-point value held within the given XMTRX register to value.

◆ shz_xmtrx_read_row()

shz_vec4_t shz_xmtrx_read_row ( unsigned int index )

Returns the values at the the given row index, as a 4D vector.

◆ shz_xmtrx_read_col()

shz_vec4_t shz_xmtrx_read_col ( unsigned int index )

Returns the values at the given column index, as a 4D vector.

◆ shz_xmtrx_write_row()

void shz_xmtrx_write_row	(	unsigned int	index,
		shz_vec4_t	vector )

Sets the values at the given row index to the given 4D vector.

◆ shz_xmtrx_write_col()

void shz_xmtrx_write_col	(	unsigned int	index,
		shz_vec4_t	vector )

Sets the values at the given column index to the given 4D vector.

◆ shz_xmtrx_swap_rows()

void shz_xmtrx_swap_rows	(	unsigned int	index1,
		unsigned int	index2 )

Swaps the values of the rows with the given indices.

◆ shz_xmtrx_swap_cols()

void shz_xmtrx_swap_cols	(	unsigned int	index1,
		unsigned int	index2 )

Swaps the values of the columns with the given indices.

◆ shz_xmtrx_load_4x4()

void shz_xmtrx_load_4x4 ( const shz_mat4x4_t * matrix )

Loads the given 4x4 matrix as XMTRX.

◆ shz_xmtrx_load_wxyz_4x4()

void shz_xmtrx_load_wxyz_4x4 ( const shz_mat4x4_t * matrix )

Loads the given 4x4 matrix as XMTRX, with the 4th column for translation being loaded as the first column.

◆ shz_xmtrx_load_unaligned_4x4()

void shz_xmtrx_load_unaligned_4x4 ( const float matrix[16] )

Loads the given array of unaligned 16 float values as the 4x4 XMTRX matrix.

◆ shz_xmtrx_load_cols_4x4()

void shz_xmtrx_load_cols_4x4	(	const shz_vec4_t *	c1,
		const shz_vec4_t *	c2,
		const shz_vec4_t *	c3,
		const shz_vec4_t *	c4 )

Sets XMTRX equal to the 4x4 matrix created from the 4 given 4D column vectors.

◆ shz_xmtrx_load_rows_4x4()

void shz_xmtrx_load_rows_4x4	(	const shz_vec4_t *	r1,
		const shz_vec4_t *	r2,
		const shz_vec4_t *	r3,
		const shz_vec4_t *	r4 )

Sets XMTRX equal to the 4x4 matrix created from the 4 given 4D row vectors.

◆ shz_xmtrx_load_transpose_4x4()

void shz_xmtrx_load_transpose_4x4 ( const shz_mat4x4_t * matrix )

Loads XMTRX with the transpose of the given 4x4 matrix.

◆ shz_xmtrx_load_transpose_unaligned_4x4()

void shz_xmtrx_load_transpose_unaligned_4x4 ( const float matrix[16] )

Loads XMTRX with the transpose of the 4x4 matrix created from the given unaligned array of 16 floats.

◆ shz_xmtrx_load_3x4()

void shz_xmtrx_load_3x4 ( const shz_mat3x4_t * matrix )

Loads the given 3x4 matrix into XMTRX, initializing its remaining elements to identity.

◆ shz_xmtrx_load_cols_4x3()

void shz_xmtrx_load_cols_4x3	(	const shz_vec4_t *	c1,
		const shz_vec4_t *	c2,
		const shz_vec4_t *	c3 )

Loads the 3x4 matrix formed from the given 3 4D column vectors into XMTRX.

All remaining elements are initialized to identity matrix values.

See also: shz_xmtrx_load_rows_3x4()

◆ shz_xmtrx_load_rows_3x4()

void shz_xmtrx_load_rows_3x4	(	const shz_vec4_t *	r1,
		const shz_vec4_t *	r2,
		const shz_vec4_t *	r3 )

Loads the 3x4 matrix formed from the given 3 4D row vectors into XMTRX.

All remaining elements are initialized to identity matrix values.

See also: shz_xmtrx_load_cols_3x4()

◆ shz_xmtrx_load_3x3()

void shz_xmtrx_load_3x3 ( const shz_mat3x3_t * matrix )

Loads the given 3x3 matrix into XMTRX, initalizing its remaining elements to identity.

◆ shz_xmtrx_load_transpose_3x3()

void shz_xmtrx_load_transpose_3x3 ( const float * matrix )

Loads the transpose of the given 3x3 matrix into XMTRX, initializing its remaining elements to identity.

◆ shz_xmtrx_load_2x2()

void shz_xmtrx_load_2x2 ( const shz_mat2x2_t * matrix )

Loads the given 2x2 matrix into XMTRX, initializing its remaining elements to identity.

◆ shz_xmtrx_store_4x4()

void shz_xmtrx_store_4x4 ( shz_mat4x4_t * matrix )

Stores the current values held within XMTRX into the given 4x4 matrix.

◆ shz_xmtrx_store_unaligned_4x4()

void shz_xmtrx_store_unaligned_4x4 ( float matrix[16] )

Stores the current values held within XMTRX into the given unaligned 16-float array.

◆ shz_xmtrx_store_transpose_4x4()

void shz_xmtrx_store_transpose_4x4 ( shz_mat4x4_t * matrix )

Stores the transpose of the current values held within XMTRX into the given 4x4 matrix.

◆ shz_xmtrx_store_transpose_unaligned_4x4()

void shz_xmtrx_store_transpose_unaligned_4x4 ( float matrix[16] )

Stores the transpose of the the current values held within XMTRX into the given 16-element float array.

◆ shz_xmtrx_store_3x4()

void shz_xmtrx_store_3x4 ( shz_mat3x4_t * matrix )

Stores the top-left 3x4 values currently held within XMTRX into the given matrix.

◆ shz_xmtrx_store_3x3()

void shz_xmtrx_store_3x3 ( shz_mat3x3_t * matrix )

Stores the top-left 3x3 values currently held within XMTRX into the given matrix.

◆ shz_xmtrx_store_transpose_3x3()

void shz_xmtrx_store_transpose_3x3 ( shz_mat3x3_t * matrix )

Stores the transpose of the top-left 3x3 values currently held within XMTRX into the given matrix.

◆ shz_xmtrx_store_2x2()

void shz_xmtrx_store_2x2 ( shz_mat2x2_t * matrix )

Stores the top-left 2x2 values currently held within XMTRX into the given matrix.

◆ shz_xmtrx_init_identity()

void shz_xmtrx_init_identity ( void )

Initializes XMTRX to the 4x4 identity matrix.

◆ shz_xmtrx_init_identity_safe()

void shz_xmtrx_init_identity_safe ( void )

Safely initializes XMTRX to be a 4D identity matrix.

Deprecated: shz_xmtrx_init_identity() is already safe now by default. This routine simply calls directly into it and should not be used.

See also: shz_xmtrx_init_identity()

◆ shz_xmtrx_init_zero()

void shz_xmtrx_init_zero ( void )

Initializes XMTRX to contain the value of 0.0f for each element.

◆ shz_xmtrx_init_one()

void shz_xmtrx_init_one ( void )

Initializes XMTRX to contain the value of 1.0f for each element.

◆ shz_xmtrx_init_fill()

void shz_xmtrx_init_fill ( float value )

Initializes XMTRX to contain the given value for each element.

◆ shz_xmtrx_init_translation()

void shz_xmtrx_init_translation	(	float	x,
		float	y,
		float	z )

Initializes XMTRX to be a 3D translation matrix to the given coordinates.

◆ shz_xmtrx_init_scale()

void shz_xmtrx_init_scale	(	float	x,
		float	y,
		float	z )

Initializes XMTRX to be a 3D scale matrix with the given dimensions.

◆ shz_xmtrx_init_rotation_x()

void shz_xmtrx_init_rotation_x ( float x )

Initializes XMTRX to be a 3D rotation matrix by x radians about the X axis.

◆ shz_xmtrx_init_rotation_y()

void shz_xmtrx_init_rotation_y ( float y )

Initializes XMTRX to be a 3D rotation matrix by y radians about the Y axis.

◆ shz_xmtrx_init_rotation_z()

void shz_xmtrx_init_rotation_z ( float z )

Initializes XMTRX to be a 3D rotation matrix by z radians about the Z axis.

◆ shz_xmtrx_init_rotation_xyz()

void shz_xmtrx_init_rotation_xyz	(	float	xAngle,
		float	yAngle,
		float	zAngle )

Initializes XMTRX to be a 3D X-Y-Z rotation matrix, with the corresponding angles given in radians.

Note: The given angles are represented as Tait-Bryan angles, representing an extrinsic rotation.

See also: shz_xmtrx_init_rotation_zyx(), shz_xmtrx_init_rotation_yxz()

◆ shz_xmtrx_init_rotation_zyx()

void shz_xmtrx_init_rotation_zyx	(	float	zAngle,
		float	yAngle,
		float	xAngle )

Initializes XMTRX to be a 3D Z-Y-X rotation matrix, with the corresponding angles given in radians.

Note: The given angles are represented as Tait-Bryan angles, representing an extrinsic rotation.

See also: shz_xmtrx_init_rotation_xyz(), shz_xmtrx_init_rotation_yxz()

◆ shz_xmtrx_init_rotation_zxy()

void shz_xmtrx_init_rotation_zxy	(	float	zAngle,
		float	xAngle,
		float	yAngle )

Initializes XMTRX to be a 3D Z-X-Y rotation matrix, with the corresponding angles given in radians.

Note: The given angles are represented as Tait-Bryan angles, representing an extrinsic rotation.

See also: shz_xmtrx_init_rotation_zyx(), shz_xmtrx_init_rotation_yxz()

◆ shz_xmtrx_init_rotation_yxz()

void shz_xmtrx_init_rotation_yxz	(	float	yAngle,
		float	xAngle,
		float	zAngle )

Initializes XMTRX to be a 3D Y-X-Z rotation matrix, with the corresponding angles given in radians.

Note: The given angles are represented as Tait-Bryan angles, representing an extrinsic rotation.

See also: shz_xmtrx_init_rotation_yxz(), shz_xmtrx_init_rotation_xyz()

◆ shz_xmtrx_init_rotation()

void shz_xmtrx_init_rotation	(	float	angle,
		float	xAxis,
		float	yAxis,
		float	zAxis )

Initializes XMTRX to a 3D rotation matrix of angle radians about the vector with the given components.

Note: This routine works similarly to glRotatef() applied to an identitiy matrix. The given axis will automatically be normalized internally.

See also: shz_xmtrx_init_rotation_dir()

◆ shz_xmtrx_init_rotation_dir()

void shz_xmtrx_init_rotation_dir	(	float	angle,
		float	x,
		float	y,
		float	z )

Initializes XMTRX to contain a 3D rotation matrix of angle radians about the given axis.

This is a faster version of shz_xmtrx_init_rotation() or glRotatef() which requires being passed a unit vector for the rotation axis.

Warning: The vector components representing the axis of rotation must be prenormalized!

See also: shz_xmtrx_init_rotation()

◆ shz_xmtrx_init_diagonal()

void shz_xmtrx_init_diagonal	(	float	x,
		float	y,
		float	z,
		float	w )

Initializes XMTRX to be a diagonal matrix with the given diagonal values.

◆ shz_xmtrx_init_upper_triangular()

void shz_xmtrx_init_upper_triangular	(	float	col1,
		shz_vec2_t	col2,
		shz_vec3_t	col3,
		shz_vec4_t	col4 )

Initializes XMTRX to be an upper triangular matrix with the given column values.

◆ shz_xmtrx_init_lower_triangular()

void shz_xmtrx_init_lower_triangular	(	shz_vec4_t	col1,
		shz_vec3_t	col2,
		shz_vec2_t	col3,
		float	col4 )

Initializes XMTRX to be a lower triangular matrix with the given column values.

◆ shz_xmtrx_init_symmetric_skew()

void shz_xmtrx_init_symmetric_skew	(	float	x,
		float	y,
		float	z )

Initializes XMTRX to be the 3D symmetric skew matrix formed from the given vector components.

◆ shz_xmtrx_init_outer_product()

void shz_xmtrx_init_outer_product	(	shz_vec4_t	x,
		shz_vec4_t	y )

Initializes XMTRX to the 4D matrix resulting from taking the outer product of the two 4D vectors.

◆ shz_xmtrx_init_permutation_wxyz()

void shz_xmtrx_init_permutation_wxyz ( void )

Initializes XMTRX to a permutation matrix, which reorders the components of transformed vectors to be in WXYZ order.

◆ shz_xmtrx_init_permutation_yzwx()

void shz_xmtrx_init_permutation_yzwx ( void )

Initializes XMTRX to a permutation matrix, which reorders the components of transformed vectors to be in YZWX order.

◆ shz_xmtrx_init_permutation_wzyx()

void shz_xmtrx_init_permutation_wzyx ( void )

Initializes XMTRX to a permutation matrix, which reorders the components of transformed vectors to be in WZYX order.

◆ shz_xmtrx_init_screen()

void shz_xmtrx_init_screen	(	float	width,
		float	height )

Initializes XMTRX to the viewport matrix with the given dimensions.

fr[n + 0]	fr[n + 4]	fr[n + 8]	fr[n + 12]
w*0.5f	0.0f	0.0f	w*0.5f
0.0f	-h*0.5f	0.0f	h*0.5f
0.0f	0.0f	1.0f	0.0f
0.0f	0.0f	0.0f	1.0f

◆ shz_xmtrx_init_lookat()

void shz_xmtrx_init_lookat	(	shz_vec3_t	eye,
		shz_vec3_t	center,
		shz_vec3_t	up )

Initializes XMTRX to a "lookAt" view matrix, equivalent to gluLookAt().

Warning: This routine clobbers any previous XMTRX contents.

◆ shz_xmtrx_init_ortho()

void shz_xmtrx_init_ortho	(	float	left,
		float	right,
		float	bottom,
		float	top,
		float	znear,
		float	zfar )

Initializes XMTRX to an orthographic projection matrix, equivalent to glOrtho().

Warning: This routine clobbers any previous XMTRX contents.

◆ shz_xmtrx_init_frustum()

void shz_xmtrx_init_frustum	(	float	left,
		float	right,
		float	bottom,
		float	top,
		float	znear,
		float	zfar )

Initializes XMTRX to a frustum projection matrix, equivalent to glFrustum().

Warning: This routine clobbers any previous XMTRX contents.

◆ shz_xmtrx_init_perspective()

void shz_xmtrx_init_perspective	(	float	fov,
		float	aspect,
		float	znear )

Initializes XMTRX to a perspective projection matrix.

Warning: This routine clobbers any previous XMTRX contents.

◆ shz_xmtrx_init_rotation_quat()

void shz_xmtrx_init_rotation_quat ( shz_quat_t q )

Initializes XMTRX to a 3D rotation matrix with its orientation given by a quaternion.

Warning: This routine clobbers any previous XMTRX contents.; This routine is out-of-line.

◆ shz_xmtrx_apply_4x4()

void shz_xmtrx_apply_4x4 ( const shz_mat4x4_t * matrix )

Multiplies and accumulates the given 4x4 matrix onto XMTRX.

◆ shz_xmtrx_apply_unaligned_4x4()

void shz_xmtrx_apply_unaligned_4x4 ( const float matrix[16] )

Multiplies and accumulates the given 16-entry float array as a 4x4 matrix onto XMTRX.

◆ shz_xmtrx_apply_transpose_4x4()

void shz_xmtrx_apply_transpose_4x4 ( const shz_mat4x4_t * matrix )

Multiplies and accumulates the transpose of the given 4x4 matrix onto XMTRX.

◆ shz_xmtrx_apply_transpose_unaligned_4x4()

void shz_xmtrx_apply_transpose_unaligned_4x4 ( const float matrix[16] )

Multiplies and accumulates the transpose of the given 16-entry float array as a 4x4 matrix onto XMTRX.

◆ shz_xmtrx_apply_reverse_4x4()

void shz_xmtrx_apply_reverse_4x4 ( const shz_mat4x4_t * matrix )

Multiplies and accumulates XMTRX onto matrix, storing the result as XMTRX.

◆ shz_xmtrx_apply_reverse_unaligned_4x4()

void shz_xmtrx_apply_reverse_unaligned_4x4 ( const float matrix[16] )

Multiplies and accumulates XMTRX onto the given float array as a 4x4 matrix, storing the result as XMTRX.

◆ shz_xmtrx_apply_reverse_transpose_4x4()

void shz_xmtrx_apply_reverse_transpose_4x4 ( const shz_mat4x4_t * matrix )

Multiplies and accumulates XMTRX onto the transpose of matrix, storing the result as XMTRX.

◆ shz_xmtrx_apply_reverse_transpose_unaligned_4x4()

void shz_xmtrx_apply_reverse_transpose_unaligned_4x4 ( const float matrix[16] )

Multiplies and accumulates XMTRX onto the transpose of the given float array as a 4x4 matrix, storing the result as XMTRX.

◆ shz_xmtrx_apply_3x4()

void shz_xmtrx_apply_3x4 ( const shz_mat3x4_t * matrix )

Multiplies and accumulates the given 3x4 matrix onto XMTRX, not modifying other elements.

◆ shz_xmtrx_apply_3x3()

void shz_xmtrx_apply_3x3 ( const shz_mat3x3_t * matrix )

Multiplies and accumulates the given 3x3 matrix onto XMTRX, not modifying other elements.

◆ shz_xmtrx_apply_transpose_3x3()

void shz_xmtrx_apply_transpose_3x3 ( const shz_mat3x3_t * matrix )

Multiplies and accumulates the transpose of the given 3x3 matrix onto XMTRX, not modifying other elements.

◆ shz_xmtrx_apply_2x2()

void shz_xmtrx_apply_2x2 ( const shz_mat2x2_t * matrix )

Multiplies and accumulates the given 2x2 matrix onto XMTRX, not modifying other elements.

◆ shz_xmtrx_apply_translation()

void shz_xmtrx_apply_translation	(	float	x,
		float	y,
		float	z )

Adds the values of the given 3 components to the 3D translation components of XMTRX.

◆ shz_xmtrx_apply_scale()

void shz_xmtrx_apply_scale	(	float	x,
		float	y,
		float	z )

Multiplies the values of the inner 3x3 matrix by the given 3D scaling terms.

◆ shz_xmtrx_apply_rotation_x()

void shz_xmtrx_apply_rotation_x ( float x )

Transforms the values of the inner 3x3 matrix by a rotation matrix of x radians about the X axis.

◆ shz_xmtrx_apply_rotation_y()

void shz_xmtrx_apply_rotation_y ( float y )

Transforms the values of the inner 3x3 matrix by a rotation matrix of y radians about the Y axis.

◆ shz_xmtrx_apply_rotation_z()

void shz_xmtrx_apply_rotation_z ( float z )

Transforms the values of the inner 3x3 matrix by a rotation matrix of z radians about the Z axis.

◆ shz_xmtrx_apply_rotation_xyz()

void shz_xmtrx_apply_rotation_xyz	(	float	xAngle,
		float	yAngle,
		float	zAngle )

Multiplies and accumulates XMTRX by a 3D X-Y-Z rotation matrix, with the corresponding angles given in radians.

The transform is applied to the inner 3x3 values within XMTRX, preserving the translational components.

Note: The given angles are represented as Tait-Bryan angles, representing an extrinsic rotation.

See also: shz_xmtrx_apply_rotation_zyx(), shz_xmtrx_apply_rotation_yxz()

◆ shz_xmtrx_apply_rotation_zyx()

void shz_xmtrx_apply_rotation_zyx	(	float	zAngle,
		float	yAngle,
		float	xAngle )

Multiplies and accumulates XMTRX by a 3D Z-Y-X rotation matrix, with the corresponding angles given in radians.

The transform is applied to the inner 3x3 values within XMTRX, preserving the translational components.

Note: The given angles are represented as Tait-Bryan angles, representing an extrinsic rotation.

See also: shz_xmtrx_apply_rotation_xyz(), shz_xmtrx_apply_rotation_yxz()

◆ shz_xmtrx_apply_rotation_zxy()

void shz_xmtrx_apply_rotation_zxy	(	float	zAngle,
		float	xAngle,
		float	yAngle )

Multiplies and accumulates XMTRX by a 3D Z-X-Y rotation matrix, with the corresponding angles given in radians.

The transform is applied to the inner 3x3 values within XMTRX, preserving the translational components.

Note: The given angles are represented as Tait-Bryan angles, representing an extrinsic rotation.

See also: shz_xmtrx_apply_rotation_zyx(), shz_xmtrx_apply_rotation_yxz()

◆ shz_xmtrx_apply_rotation_yxz()

void shz_xmtrx_apply_rotation_yxz	(	float	yAngle,
		float	xAngle,
		float	zAngle )

Multiplies and accumulates XMTRX by a 3D Y-X-Z rotation matrix, with the corresponding angles given in radians.

The transform is applied to the inner 3x3 values within XMTRX, preserving the translational components.

Note: The given angles are represented as Tait-Bryan angles, representing an extrinsic rotation.

See also: shz_xmtrx_apply_rotation_xyz(), shz_xmtrx_apply_rotation_zyx()

◆ shz_xmtrx_apply_rotation()

void shz_xmtrx_apply_rotation	(	float	angle,
		float	x,
		float	y,
		float	z )

Transforms the values of the inner 3x3 matrix by a rotation matrix of angle radians about the axis with the given components.

◆ shz_xmtrx_apply_rotation_quat()

void shz_xmtrx_apply_rotation_quat ( shz_quat_t quat )

Transforms the values of the inner 3x3 matrix by the rotation matrix represented by the given quaternion.

◆ shz_xmtrx_apply_lookat()

void shz_xmtrx_apply_lookat	(	shz_vec3_t	eye,
		shz_vec3_t	center,
		shz_vec3_t	up )

Applies the 3D "lookAt" matrix constructed with the given vector components onto XMTRX. Equivalent to gluLookAt().

◆ shz_xmtrx_apply_ortho()

void shz_xmtrx_apply_ortho	(	float	left,
		float	right,
		float	bottom,
		float	top,
		float	znear,
		float	zfar )

Applies a 2D orthographic projection matrix onto XMTRX, equivalent to glOrtho().

◆ shz_xmtrx_apply_frustum()

void shz_xmtrx_apply_frustum	(	float	left,
		float	right,
		float	bottom,
		float	top,
		float	znear,
		float	zfar )

Applies a frustum projection matrix onto XMTRX, equivalent to glFrustum().

◆ shz_xmtrx_apply_perspective()

void shz_xmtrx_apply_perspective	(	float	fov,
		float	aspect,
		float	znear )

Multiplies and accumulates the perspective matrix constructed from the given values onto XMTRX.

fr[n + 0]	fr[n + 4]	fr[n + 8]	fr[n + 12]
cot(f)/a	0.0f	0.0f	0.0f
0.0f	cot(f)	0.0f	0.0f
0.0f	0.0f	0.0f	nz
0.0f	0.0f	-1.0f	0.0f

◆ shz_xmtrx_apply_screen()

void shz_xmtrx_apply_screen	(	float	width,
		float	height )

Multiplies and accumulates the viewport matrix created with the given components.

fr[n + 0]	fr[n + 4]	fr[n + 8]	fr[n + 12]
w*0.5f	0.0f	0.0f	w*0.5f
0.0f	-h*0.5f	0.0f	h*0.5f
0.0f	0.0f	1.0f	0.0f
0.0f	0.0f	0.0f	1.0f

◆ shz_xmtrx_apply_symmetric_skew()

void shz_xmtrx_apply_symmetric_skew	(	float	x,
		float	y,
		float	z )

Multiplies and accumulates the 3D symmetric skew matrix with the given components onto XMTRX.

◆ shz_xmtrx_apply_permutation_wxyz()

void shz_xmtrx_apply_permutation_wxyz ( void )

Multiplies and accumulates a permutation matrix, which reorders the components of transformed vectors to be in WXYZ order.

◆ shz_xmtrx_apply_permutation_yzwx()

void shz_xmtrx_apply_permutation_yzwx ( void )

Multiplies and accumulates a permutation matrix, which reorders the components of transformed vectors to be in YZWX order.

◆ shz_xmtrx_apply_permutation_wzyx()

void shz_xmtrx_apply_permutation_wzyx ( void )

Multiplies and accumulates a permutation matrix, which reorders the components of transformed vectors to be in WZYX order.

◆ shz_xmtrx_apply_self()

void shz_xmtrx_apply_self ( void )

Multiplies and accumulatse the XMTRX matrix by itself, squaring it.

◆ shz_xmtrx_translate()

void shz_xmtrx_translate	(	float	x,
		float	y,
		float	z )

Multiplies and accumulates XMTRX by a 3D translation matrix with the given components (glTranslatef() equivalent).

◆ shz_xmtrx_scale()

void shz_xmtrx_scale	(	float	x,
		float	y,
		float	z )

Multiplies and accumulates XMTRX by a 3D scaling matrix with the given components (glScalef() equivalent).

◆ shz_xmtrx_rotate_x()

void shz_xmtrx_rotate_x ( float radians )

Multiplies and accumulates XMTRX by a 3D rotation matrix about the X axis.

◆ shz_xmtrx_rotate_y()

void shz_xmtrx_rotate_y ( float radians )

Multiplies and accumulates XMTRX by a 3D rotation matrix about the Y axis.

◆ shz_xmtrx_rotate_z()

void shz_xmtrx_rotate_z ( float radians )

Multiplies and accumulates XMTRX by a 3D rotation matrix about the Z axis.

◆ shz_xmtrx_rotate_xyz()

void shz_xmtrx_rotate_xyz	(	float	xRadians,
		float	yRadians,
		float	zRadians )

Multiplies and accumulates XMTRX by 3D rotation matrices about the X then Y then Z axes.

◆ shz_xmtrx_rotate_zyx()

void shz_xmtrx_rotate_zyx	(	float	zRadians,
		float	yRadians,
		float	xRadians )

Multiplies and accumulates XMTRX by 3D rotation matrices about the Z then Y then X axes.

◆ shz_xmtrx_rotate_zxy()

void shz_xmtrx_rotate_zxy	(	float	zRadians,
		float	xRadians,
		float	yRadians )

Multiplies and accumulates XMTRX by 3D rotation matrices about the Z then X then Y axes.

◆ shz_xmtrx_rotate_yxz()

void shz_xmtrx_rotate_yxz	(	float	yRadians,
		float	xRadians,
		float	zRadians )

Multiplies and accumulates XMTRX by 3D rotation matrices about the Y then X then Z axes.

◆ shz_xmtrx_rotate()

void shz_xmtrx_rotate	(	float	radians,
		float	xAxis,
		float	yAxis,
		float	zAxis )

Multiplies and accumulates XMTRX by the 3D rotation matrix formed by the given axis and angle (glRotatef equivalent).

◆ shz_xmtrx_translate_reverse()

void shz_xmtrx_translate_reverse	(	float	x,
		float	y,
		float	z )

Pre-multiplies and accumulates XMTRX onto the 3D translation matrix with the given components.

◆ shz_xmtrx_scale_reverse()

void shz_xmtrx_scale_reverse	(	float	x,
		float	y,
		float	z )

Pre-multiplies and accumulates XMTRX onto the 3D scaling matrix with the given components.

◆ shz_xmtrx_load_apply_4x4()

void shz_xmtrx_load_apply_4x4	(	const shz_mat4x4_t *	matrix1,
		const shz_mat4x4_t *	matrix2 )

Loads XMTRX with the result of applying matrix2 onto matrix1.

This operation is equivalent to: shz_xmtrx_load_4x4(matrix1); shz_xmtrx_apply_4x4(matrix2);

However, it has been optimized and pipelined for performing the load and multiply in parallel.

See also: shz_xmtrx_load_4x4(), shz_xmtrx_apply_4x4(), shz_xmtrx_load_apply_store_4x4()

◆ shz_xmtrx_load_apply_unaligned_4x4()

void shz_xmtrx_load_apply_unaligned_4x4	(	const float	matrix1[16],
		const float	matrix2[16] )

Loads XMTRX with the result of applying unaligned matrix2 onto matrix1.

This routine is equivalent to shz_xmtrx_load_apply_4x4(), except that the two operand matrices do not require 8-byte alignment and can simply be 16-element single-precision float arrays.

See also: shz_xmtrx_load_apply_4x4()

◆ shz_xmtrx_apply_store_4x4()

void shz_xmtrx_apply_store_4x4	(	shz_mat4x4_t *	out,
		const shz_mat4x4_t *	in )

Multiplies XMTRX by the matrix, in, storing the result within the matrix, out.

This routine is roughly equivalent to: shz_xmtrx_apply_4x4(in); shz_xmtrx_store_4x4(out);

However, it has been optimized and pipelined for performing the multiply and store in parallel.

Note: This is useful for when you want to multiply a batch of matrices by the same matrix, held within XMTRX.

Warning: The result of the multiplication is not stored within XMTRX, despite it getting clobbered.

See also: shz_xmtrx_apply_4x4(), shz_xmtrx_store_4x4(), shz_xmtrx_apply_store_unaligned_4x4()

◆ shz_xmtrx_apply_store_unaligned_4x4()

void shz_xmtrx_apply_store_unaligned_4x4	(	float	out[16],
		const float	in[16] )

Multiplies XMTRX by the unaligned matrix, in, storing the result within the unaligned matrix, out.

This routine is roughly equivalent to: shz_xmtrx_apply_unaligned_4x4(in); shz_xmtrx_store_unaligned_4x4(out);

However, it has been optimized and pipelined for performing the multiply and store in parallel.

Note: This is useful for when you want to multiply a batch of matrices by the same matrix, held within XMTRX.

Warning: The result of the multiplication is not stored within XMTRX, despite it getting clobbered.

See also: shz_xmtrx_apply_unaligned_4x4(), shz_xmtrx_store_unaligned_4x4(), shz_xmtrx_apply_store_4x4()

◆ shz_xmtrx_load_apply_store_4x4()

void shz_xmtrx_load_apply_store_4x4	(	shz_mat4x4_t *	out,
		const shz_mat4x4_t *	matrix1,
		const shz_mat4x4_t *	matrix2 )

Loads XMTRX with the 4x4 result of applying matrix2 onto matrix1, storing the result.

This operation is equivalent to: shz_xmtrx_load_4x4(matrix1); shz_xmtrx_apply_4x4(matrix2); shz_xmtrx_store_4x4(out);

However, it has been optimized and pipelined for performing the loads, multiplies, and stores in parallel.

See also: shz_xmtrx_load_apply(), shz_xmtrx_load_apply_store_unaligned_4x4()

◆ shz_xmtrx_load_apply_store_unaligned_4x4()

void shz_xmtrx_load_apply_store_unaligned_4x4	(	float	out[16],
		const float	matrix1[16],
		const float	matrix2[16] )

Loads XMTRX with the result of applying unaligned matrix2 onto unaligned matrix1, storing the result.

This routine is equivalent to shz_xmtrx_load_apply_store_4x4(), except that the three operand matrices do not require 8-byte alignment and can simply be 16-element single-precision float arrays.

See also: shz_xmtrx_load_apply_store_4x4()

◆ shz_xmtrx_load_apply_store_3x4()

void shz_xmtrx_load_apply_store_3x4	(	shz_mat3x4_t *	out,
		const shz_mat3x4_t *	matrix1,
		const shz_mat3x4_t *	matrix2 )

Loads XMTRX with the 3x4 result of applying matrix2 onto matrix1, storing the result.

This operation is equivalent to: shz_xmtrx_load_3x4(matrix1); shz_xmtrx_apply_3x4(matrix2); shz_xmtrx_store_3x4(out);

However, it has been optimized and pipelined for performing the loads, multiplies, and stores in parallel.

Note: The resulting matrix does not get stored within XMTRX, despite it getting clobbered.

See also: shz_xmtrx_load_3x4(), shz_xmtrx_apply_3x4(), shz_xmtrx_store_3x4()

◆ shz_xmtrx_load_apply_store_3x3()

void shz_xmtrx_load_apply_store_3x3	(	shz_mat3x3_t *	out,
		const shz_mat3x3_t *	matrix1,
		const shz_mat3x3_t *	matrix2 )

Loads XMTRX with the 3x3 result of applying matrix2 onto matrix1, storing the result.

This operation is equivalent to: shz_xmtrx_load_3x3(matrix1); shz_xmtrx_apply_3x3(matrix2); shz_xmtrx_store_3x3(out);

However, it has been optimized and pipelined for performing the loads, multiplies, and stores in parallel.

Note: The resulting matrix does not get stored within XMTRX, despite it getting clobbered.

See also: shz_xmtrx_load_3x3(), shz_xmtrx_apply_3x3(), shz_xmtrx_store_3x3()

◆ shz_xmtrx_transform_vec4()

shz_vec4_t shz_xmtrx_transform_vec4 ( shz_vec4_t vec )

Returns the 4D vector that is the result of transforming vec by XMTRX.

◆ shz_xmtrx_transform_vec3()

shz_vec3_t shz_xmtrx_transform_vec3 ( shz_vec3_t vec )

Returns the 3D vector that is the result of transforming vec by XMTRX.

◆ shz_xmtrx_transform_vec2()

shz_vec2_t shz_xmtrx_transform_vec2 ( shz_vec2_t vec )

Returns the 2D vector that is the result of transforming vec by XMTRX.

◆ shz_xmtrx_transform_point2()

shz_vec2_t shz_xmtrx_transform_point2 ( shz_vec2_t pt )

Returns the 2D point that is the result of transforming pt by XMTRX.

◆ shz_xmtrx_transform_point3()

shz_vec3_t shz_xmtrx_transform_point3 ( shz_vec3_t pt )

Returns the 3D point that is the result of transforming pt by XMTRX.

◆ shz_xmtrx_set_translation()

void shz_xmtrx_set_translation	(	float	x,
		float	y,
		float	z )

Sets only the translational components of XMTRX to the given values.

◆ shz_xmtrx_set_scale()

void shz_xmtrx_set_scale	(	float	x,
		float	y,
		float	z )

Sets only the inner 3x3 submatrix of XMTRX to be a scaling matrix.

◆ shz_xmtrx_get_translation()

shz_vec3_t shz_xmtrx_get_translation ( void )

Returns the translational components from the last column of XMTRX, as a 3D vector.

◆ shz_xmtrx_get_scale()

shz_vec3_t shz_xmtrx_get_scale ( void )

Returns the scaling components from the inner 3x3 matrix of XMTRX, as a 3D vector.

Warning: This routine assumes XMTRX is a standard TRS-style transform matrix, without shearing or reflection.

◆ shz_xmtrx_add_4x4()

void shz_xmtrx_add_4x4 ( const shz_mat4x4_t * mat )

Adds each element within mat to each element within XMTRX, storing the result in XMTRX.

◆ shz_xmtrx_sub_4x4()

void shz_xmtrx_sub_4x4 ( const shz_mat4x4_t * mat )

Subtracts each element within mat from each element within XMTRX, storing the result in XMTRX.

◆ shz_xmtrx_add_symmetric_skew()

void shz_xmtrx_add_symmetric_skew	(	float	x,
		float	y,
		float	z )

Adds the values of a 3D symmetric skew matrix constructed from the given components to XMTRX.

◆ shz_xmtrx_add_diagonal()

void shz_xmtrx_add_diagonal	(	float	x,
		float	y,
		float	z,
		float	w )

Adds the values of a 4D diagonal matrix constructed from the given components to XMTRX.

◆ shz_xmtrx_transpose()

void shz_xmtrx_transpose ( void )

Transposes the elements within XMTRX, in-place.

◆ shz_xmtrx_negate()

void shz_xmtrx_negate ( void )

Negates each element held within XMTRX.

◆ shz_xmtrx_abs()

void shz_xmtrx_abs ( void )

Takes the absolute value of each element held within XMTRX.

◆ shz_xmtrx_to_quat()

shz_quat_t shz_xmtrx_to_quat ( void )

Constructs a quaternion from the 3D rotation matrix within XMTRX.

◆ shz_xmtrx_determinant()

float shz_xmtrx_determinant ( void )

Returns the determinant of XMTRX.

◆ shz_xmtrx_invert()

void shz_xmtrx_invert ( void )

Inverts XMTRX in-place.

Stores XMTRX to memory, computes the inverse via shz_mat4x4_inverse(), and reloads the result.

Warning: This routine is out-of-line.

◆ shz_xmtrx_blend()

void shz_xmtrx_blend	(	const shz_mat4x4_t *	joint_matrix,
		float	weight )

Adds and accumulates a scaled 4x4 matrix onto XMTRX.

Each component of joint_matrix will be multiplied by weight, with the result being added to the existing value of that component of XMTRX.

This is useful for accumulating weighted joint matrices onto an initially zeroed-out XMTRX. This allows for in-place construction of a skin matrix, which can then be directly used to transform the vertices of a mesh against for animation.

See also: shz_xmtrx_init_zero()

Enumerations

Functions

Detailed Description

Enumeration Type Documentation

◆ shz_xmtrx_reg

Function Documentation

◆ shz_xmtrx_read()

◆ shz_xmtrx_write()

◆ shz_xmtrx_read_row()

◆ shz_xmtrx_read_col()

◆ shz_xmtrx_write_row()

◆ shz_xmtrx_write_col()

◆ shz_xmtrx_swap_rows()

◆ shz_xmtrx_swap_cols()

◆ shz_xmtrx_load_4x4()

◆ shz_xmtrx_load_wxyz_4x4()

◆ shz_xmtrx_load_unaligned_4x4()

◆ shz_xmtrx_load_cols_4x4()

◆ shz_xmtrx_load_rows_4x4()

◆ shz_xmtrx_load_transpose_4x4()

◆ shz_xmtrx_load_transpose_unaligned_4x4()

◆ shz_xmtrx_load_3x4()

◆ shz_xmtrx_load_cols_4x3()

◆ shz_xmtrx_load_rows_3x4()

◆ shz_xmtrx_load_3x3()

◆ shz_xmtrx_load_transpose_3x3()

◆ shz_xmtrx_load_2x2()

◆ shz_xmtrx_store_4x4()

◆ shz_xmtrx_store_unaligned_4x4()

◆ shz_xmtrx_store_transpose_4x4()

◆ shz_xmtrx_store_transpose_unaligned_4x4()

◆ shz_xmtrx_store_3x4()

◆ shz_xmtrx_store_3x3()

◆ shz_xmtrx_store_transpose_3x3()

◆ shz_xmtrx_store_2x2()

◆ shz_xmtrx_init_identity()

◆ shz_xmtrx_init_identity_safe()

◆ shz_xmtrx_init_zero()

◆ shz_xmtrx_init_one()

◆ shz_xmtrx_init_fill()

◆ shz_xmtrx_init_translation()

◆ shz_xmtrx_init_scale()

◆ shz_xmtrx_init_rotation_x()

◆ shz_xmtrx_init_rotation_y()

◆ shz_xmtrx_init_rotation_z()

◆ shz_xmtrx_init_rotation_xyz()

◆ shz_xmtrx_init_rotation_zyx()

◆ shz_xmtrx_init_rotation_zxy()

◆ shz_xmtrx_init_rotation_yxz()

◆ shz_xmtrx_init_rotation()

◆ shz_xmtrx_init_rotation_dir()

◆ shz_xmtrx_init_diagonal()

◆ shz_xmtrx_init_upper_triangular()

◆ shz_xmtrx_init_lower_triangular()

◆ shz_xmtrx_init_symmetric_skew()

◆ shz_xmtrx_init_outer_product()

◆ shz_xmtrx_init_permutation_wxyz()

◆ shz_xmtrx_init_permutation_yzwx()

◆ shz_xmtrx_init_permutation_wzyx()

◆ shz_xmtrx_init_screen()

◆ shz_xmtrx_init_lookat()

◆ shz_xmtrx_init_ortho()

◆ shz_xmtrx_init_frustum()

◆ shz_xmtrx_init_perspective()

◆ shz_xmtrx_init_rotation_quat()

◆ shz_xmtrx_apply_4x4()

◆ shz_xmtrx_apply_unaligned_4x4()

◆ shz_xmtrx_apply_transpose_4x4()

◆ shz_xmtrx_apply_transpose_unaligned_4x4()

◆ shz_xmtrx_apply_reverse_4x4()

◆ shz_xmtrx_apply_reverse_unaligned_4x4()

◆ shz_xmtrx_apply_reverse_transpose_4x4()

◆ shz_xmtrx_apply_reverse_transpose_unaligned_4x4()

◆ shz_xmtrx_apply_3x4()

◆ shz_xmtrx_apply_3x3()

◆ shz_xmtrx_apply_transpose_3x3()

◆ shz_xmtrx_apply_2x2()

◆ shz_xmtrx_apply_translation()

◆ shz_xmtrx_apply_scale()

◆ shz_xmtrx_apply_rotation_x()
