shz::vec4 Struct Reference

#include <shz_vector.hpp>

Inheritance diagram for shz::vec4:

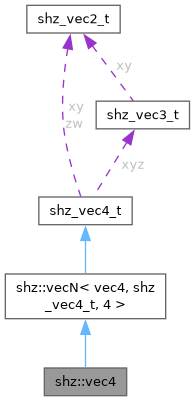

Collaboration diagram for shz::vec4:

Public Member Functions
	vec4 ()=default
	vec4 (const shz_vec4_t &other) noexcept
	vec4 (float v) noexcept
	vec4 (float x, float y, float z, float w) noexcept
	vec4 (const shz::vec2 &xy, float z, float w) noexcept
	vec4 (float x, const shz::vec2 &yz, float w) noexcept
	vec4 (float x, float y, const shz::vec2 &zw) noexcept
	vec4 (const shz::vec2 &xy, const shz::vec2 &zw) noexcept
	vec4 (const shz::vec3 &xyz, float w) noexcept
	vec4 (float x, const shz::vec3 &yzw) noexcept
vec2	xy () const noexcept
vec2	zw () const noexcept
vec3	xyz () const noexcept
	vecN () noexcept=default
	vecN (const vecN &other) noexcept=default
	vecN (const CType &other) noexcept
	vecN (const volatile CType &other) noexcept
float	dot (const CppType &other) const noexcept
vec2	dot (const CppType &v1, const CppType &v2) const noexcept
vec3	dot (const CppType &v1, const CppType &v2, const CppType &v3) const noexcept
Public Member Functions inherited from shz::vecN< vec4, shz_vec4_t, 4 >
	vecN () noexcept=default
	vecN (const vecN &other) noexcept=default
	vecN (const CType &other) noexcept
	vecN (const volatile CType &other) noexcept
T	to () const noexcept
CppType &	deref (const auto *raw) noexcept
CppType &	operator+= (const CppType &other) noexcept
CppType &	operator-= (const CppType &other) noexcept
CppType &	operator*= (const CppType &other) noexcept
CppType &	operator*= (float other) noexcept
CppType &	operator/= (const CppType &other) noexcept
CppType &	operator/= (float other) noexcept
CppType	swizzle () const noexcept
CppType	abs () const noexcept
CppType	neg () const noexcept
CppType	inv () const noexcept
float	max () const noexcept
float	min () const noexcept
CppType	clamp (float min, float max) const noexcept
CppType	floor () const noexcept
CppType	ceil () const noexcept
CppType	round () const noexcept
CppType	fract () const noexcept
CppType	sign () const noexcept
CppType	saturate () const noexcept
CppType	minv (const CppType &other) const noexcept
CppType	maxv (const CppType &other) const noexcept
float	dot (const CppType &other) const noexcept
vec2	dot (const CppType &v1, const CppType &v2) const noexcept
vec3	dot (const CppType &v1, const CppType &v2, const CppType &v3) const noexcept
float	magnitude () const noexcept
float	magnitude_sqr () const noexcept
float	magnitude_inv () const noexcept
CppType	direction () const noexcept
CppType	direction_safe () const noexcept
void	normalize () noexcept
void	normalize_safe () noexcept
CppType	normalized () const noexcept
CppType	normalized_safe () const noexcept
float	distance (const CppType &other) const noexcept
float	distance_sqr (const CppType &other) const noexcept
CppType	move (const CppType &target, float maxdist) const noexcept
CppType	reflect (const CppType &normal) const noexcept
CppType	refract (const CppType &normal, float eta) const noexcept
CppType	project (const CppType &onto) const noexcept
CppType	project_safe (const CppType &onto) const noexcept
float	angle_between (const CppType &other) const noexcept
auto	angles () const noexcept

Additional Inherited Members
Public Types inherited from shz::vecN< vec4, shz_vec4_t, 4 >
using	CppType
using	CType
Static Public Member Functions inherited from shz::vecN< vec4, shz_vec4_t, 4 >
static CppType	from (const auto &raw) noexcept
static CppType	lerp (const CppType &start, const CppType &end, float t) noexcept
static CppType	step (const CppType &vec, T &&edge) noexcept
static CppType	smoothstep (const CppType &vec, T &&edge0, T &&edge1) noexcept
static CppType	smoothstep_safe (const CppType &vec, T &&edge0, T &&edge1) noexcept
Data Fields inherited from shz_vec4_t
union {
float   e [4]
struct {
union {
struct {
float   x
float   y
float   z
}
shz_vec3_t   xyz
}
float   w
}
struct {
shz_vec2_t   xy
shz_vec2_t   zw
}
};
Static Public Attributes inherited from shz::vecN< vec4, shz_vec4_t, 4 >
static constexpr size_t	Rows
static constexpr size_t	Cols

Detailed Description

4D Vector type

C++ structure for representing a 4-dimensional vector.

See also

shz::vecN, shz_vec4_t, shz::vec2, shz::vec3

Definition at line 569 of file shz_vector.hpp.

Constructor & Destructor Documentation

vec4() [1/10]

shz::vec4::vec4 ( )

default

Default constructor: does nothing.

vec4() [2/10]

shz::vec4::vec4 ( const shz_vec4_t & other )

inlinenoexcept

C Constructor: initializes a C++ shz::vec4 from a C shz_vec4_t.

Definition at line 583 of file shz_vector.hpp.

                                                           :
        vecN(other) {}

vec4() [3/10]

shz::vec4::vec4 ( float v )

inlinenoexcept

Single-value constructor: initializes each element to the given value.

Definition at line 587 of file shz_vector.hpp.

                                           :
        vecN(shz_vec4_fill(v)) {}

vec4() [4/10]

shz::vec4::vec4 ( float x, float y, float z, float w )

inlinenoexcept

Value constructor: initializes each element to its corresponding parameter value.

Definition at line 591 of file shz_vector.hpp.

                                                                      :
        vecN(shz_vec4_init(x, y, z, w)) {}

vec4() [5/10]

shz::vec4::vec4 ( const shz::vec2 & xy, float z, float w )

inlinenoexcept

Constructs a 4D vector with a 2D vector providing the X and Y coordinates and scalars providing Z and W.

Definition at line 595 of file shz_vector.hpp.

                                                                       :
        vecN(shz_vec2_vec4(xy, z, w)) {}

vec4() [6/10]

shz::vec4::vec4 ( float x, const shz::vec2 & yz, float w )

inlinenoexcept

Constructs a 4D vector with scalars providing X and W coordinates and a 2D vector providing Y and Z.

Definition at line 599 of file shz_vector.hpp.

                                                                       :
        vecN(shz_vec4_init(x, yz.x, yz.y, w)) {}

vec4() [7/10]

shz::vec4::vec4 ( float x, float y, const shz::vec2 & zw )

inlinenoexcept

Constructs a 4D vector with scalars providing X and Y coordinaets and a 2D vector providing Z and W.

Definition at line 603 of file shz_vector.hpp.

                                                                       :
        vecN(shz_vec4_init(x, y, zw.x, zw.y )) {}

vec4() [8/10]

shz::vec4::vec4 ( const shz::vec2 & xy, const shz::vec2 & zw )

inlinenoexcept

Constructs a 4D vector from the components provided by the given pair of 2D vectors.

Definition at line 607 of file shz_vector.hpp.

                                                                        :
        vecN(shz_vec4_init(xy.x, xy.y, zw.x, zw.y)) {}

vec4() [9/10]

shz::vec4::vec4 ( const shz::vec3 & xyz, float w )

inlinenoexcept

Constructs a 4D vector with the X, Y, and Z components given by a 3D vector and W given by a scalar.

Definition at line 611 of file shz_vector.hpp.

                                                               :
        vecN(shz_vec3_vec4(xyz, w)) {}

vec4() [10/10]

shz::vec4::vec4 ( float x, const shz::vec3 & yzw )

inlinenoexcept

Constructs a 4D vector with the X component given by a scalar and the Y, Z, and W components given by a 3D vector.

Definition at line 615 of file shz_vector.hpp.

                                                               :
        vecN(shz_vec4_init(x, yzw.x, yzw.y, yzw.z)) {}

Member Function Documentation

xy()

vec2 shz::vec4::xy ( ) const

inlinenoexcept

Definition at line 619 of file shz_vector.hpp.

                                              {
        return shz_vec4_t::xy;
    }

zw()

vec2 shz::vec4::zw ( ) const

inlinenoexcept

Definition at line 624 of file shz_vector.hpp.

                                              {
        return shz_vec4_t::zw;
    }

xyz()

vec3 shz::vec4::xyz ( ) const

inlinenoexcept

Definition at line 629 of file shz_vector.hpp.

                                               {
        return shz_vec4_t::xyz;
    }

vecN() [1/4]

shz::vecN< CRTP, C, R >::vecN ( )

defaultnoexcept

Default constructor, does nothing.

vecN() [2/4]

shz::vecN< CRTP, C, R >::vecN ( const vecN & other )

defaultnoexcept

Default copy constructor.

vecN() [3/4]

shz::vecN< CRTP, C, R >::vecN ( const CType & other )

inlinenoexcept

Converting constructor from existing C instance.

Definition at line 57 of file shz_vector.hpp.

                                                      :
        CType(other) {}

vecN() [4/4]

shz::vecN< CRTP, C, R >::vecN ( const volatile CType & other )

inlinenoexcept

Converting constructor from existing volatile C instance.

Definition at line 61 of file shz_vector.hpp.

                                                               :
        CType(const_cast<const CType&>(other)) {}

dot() [1/3]

float shz::vecN< CRTP, C, R >::dot ( const CppType & other ) const

inlinenoexcept

Returns the dot product of the given vector and another.

Definition at line 255 of file shz_vector.hpp.

                                                                    {
        return shz_vec_dot(*static_cast<const CppType*>(this), other);
    }

dot() [2/3]

vec2 shz::vecN< CRTP, C, R >::dot ( const CppType & v1, const CppType & v2 ) const

noexcept

Returns the dot product of the given vector against two others.

Definition at line 260 of file shz_vector.hpp.

                                                                                               {
    return shz_vec_dot2(*static_cast<const CRTP*>(this), v1, v2);
}

dot() [3/3]

vec3 shz::vecN< CRTP, C, R >::dot ( const CppType & v1, const CppType & v2, const CppType & v3 ) const

noexcept

Returns the dot product of the given vector against three others.

Definition at line 263 of file shz_vector.hpp.

                                                                                                                  {
    return shz_vec_dot3(*static_cast<const CRTP*>(this), v1, v2, v3);
}

---

The documentation for this struct was generated from the following file:

• shz_vector.hpp
